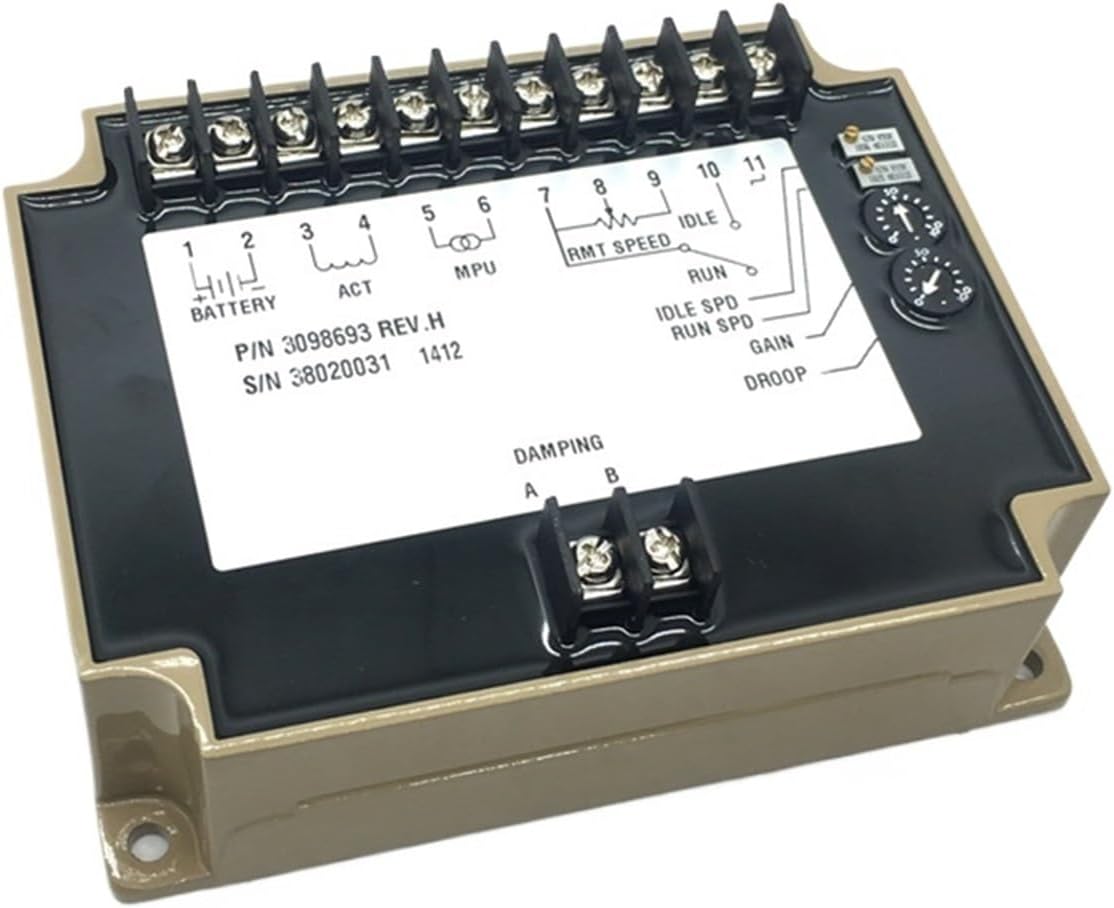

Speed Control Unit 3098693 Governor Controller 3098693 Replace for 500KW Generator

Speed ControllerSpeed Control Unit 3098693 Governor Controller 3098693 Replace For 500KW GeneratorProduct Description3098693 is a engine speed controller designed by all electronic device, it can fast and precise response to transient load changes. It has a wide speed control range. For these controllers, separate circuits allow adjustments of proportional, integral and derivative values. These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.FEATURE3098693RPM Stability<;±0.25%Speed Range1KHz ~ 6.5KHzThermal StabilityMax ±0.7%IDLE Regulation260 ±20HzDROOP RegulationMinimum 15Hz ±6Hz/ 1 AmpMaximum: 400Hz ±75Hz/ 1 AmpExternal Speed Regulation±200Hz (with 1 K connected)AUX Input Sensitivity148Hz / 1V., ±10HzImpedance1MWorking Temp Range-40 ~ 85 °CWorking Humidity RangeMaximum 95%Stocking Temp-55 ~ 92 °CShocking20-100HZ 500mm/Sec.Voltage12 or 24VGrounding PoleNegative polePower Supply40mAActuator Continuous CurrentMinimum 1A, Maximum 4.5ASignal2 ~ 120V RMS==========Model Number : 3098693Keyword : Speed Controller UnitUsage : 500KW GeneratorInput supply : 12V DC 24V DCSpeed Range : 1KHz ~ 6.5KHz

• Speed Controller
• Speed Control Unit 3098693 Governor Controller 3098693 Replace For 500KW Generator
