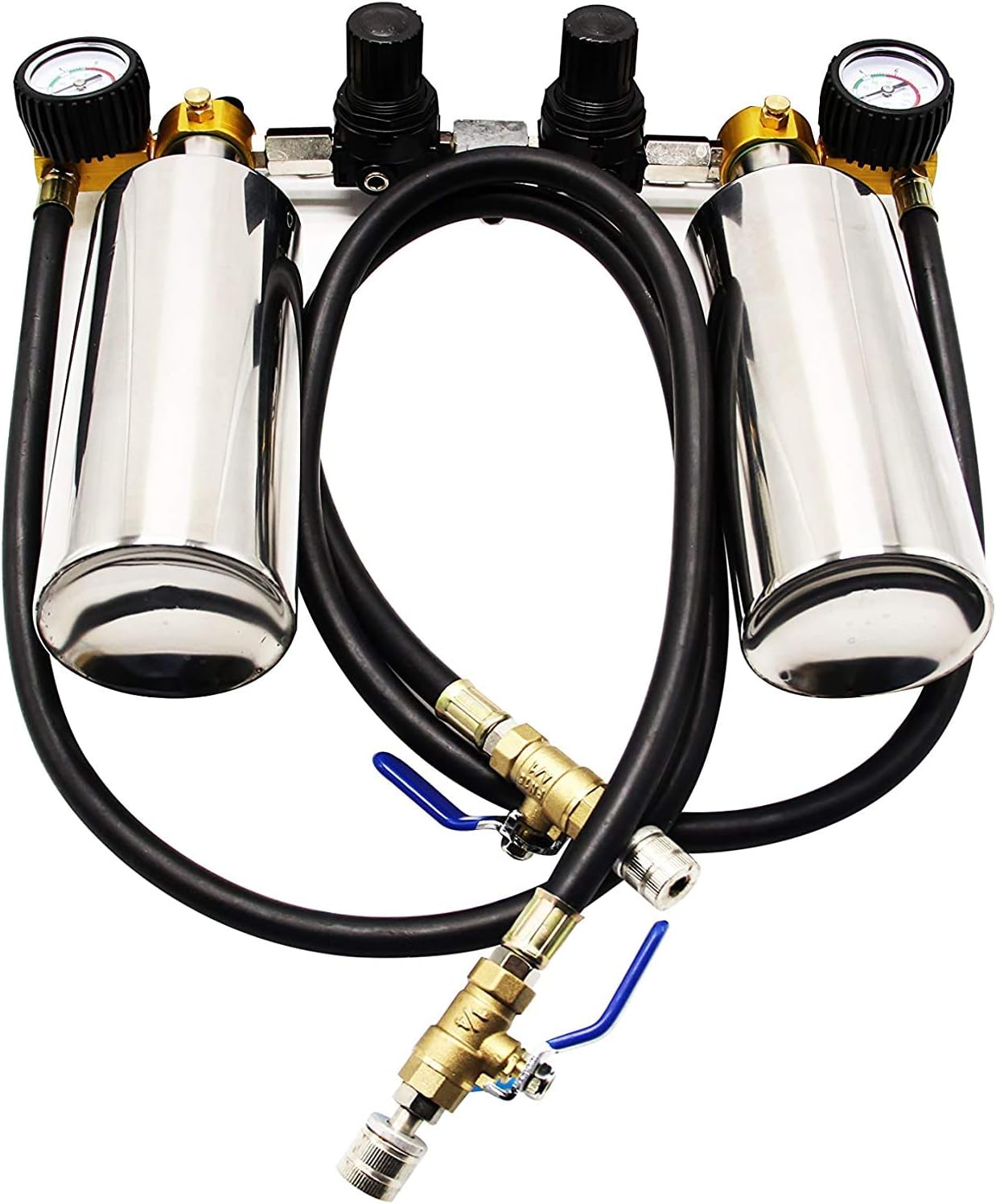

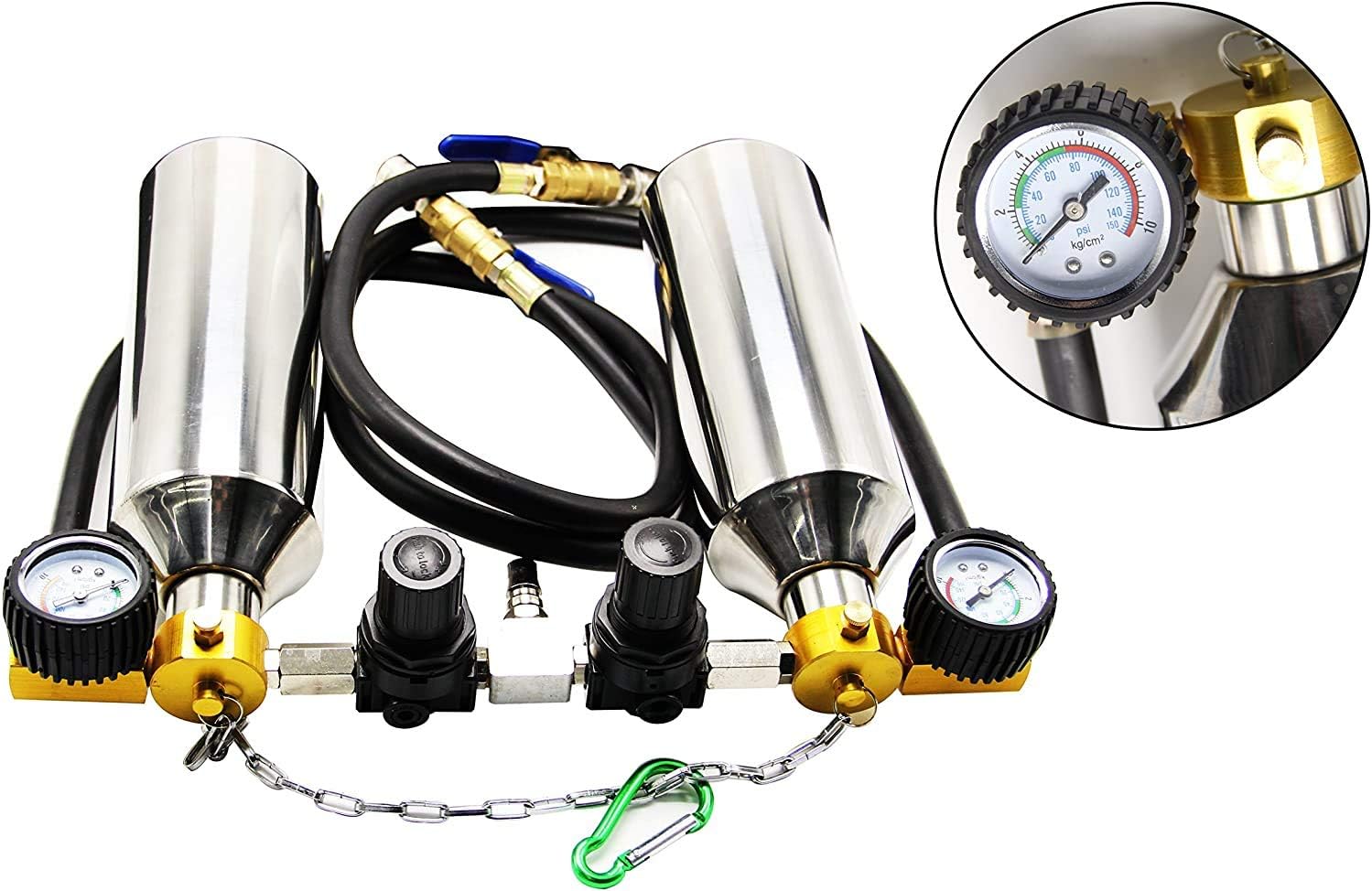

BAOSHISHAN Car Fuel Injector Cleaning kit Non Dismantle Throttle Toolkit for Auto Fuel Injector and Cleaner Machine (Double Bottle)

BAOSHISHAN Operation 1.Unscrew the bottle, pour the cleaning liquid into the bottle, and fasten the bottle as it is before; 2.Remove the petrol pump safety plug so that the petrol pump does not work. (This step must be done before cleaning.) 3.Remove the engine oil inlet pipe, connect the fitting that meets the size of the oil inlet, and then connect it with oil tube in the bottle 4.If the engine has a return pipe, plug the return pipe with a suitable connector 5.Connect the air source, regulate the pressure, start the engine, and allow the engine to work normally and start to clean: (Pressure regulation of the EFI car is about 25kg/c㎡, and it must be set according to the engine's required pressure) 6.The cleaning time is about 20 minutes or until the newly installed cleaning fluid is used up; 7.After the cleaning is completed, remove the tube, restore the engine oil line as it is before, start the engine, properly refuel, and check that there is no leakage at each oil take-in pipe. Clean the site for future use. To the throttle: To the throttle system, the way of connection is the same, just adjust the pressure of the air source 1-5PSI. The way to identify the inlet and return hose: -Generally speaking, inlet hose is bigger, return hose is smaller; -There is always a filter connected in the inlet hose side, and a buffer in the return side; -There is arrow on the hose to show the fuel flow direction. Note All products have been checked and packaged in good condition before shipping. If you have any question, please feel free to contact with us . We will try our best to give you a satisfactory solution.

• Tank Capacity: 1000ml per bottle; Pressure: 0-150PSI;
• FUNCTION: Non-dismantle fuel injector not only features with high and low pressure cleaning function, but also with the whole fuel system including throttle valve, fuel nozzle and combustion chamber;
• FEATURES: Non-dismantle cleaner has special handling one-way valves to seal up gas and durable pressure regulating valves, has anti-corrosion, anti-friction connectors for fast-connection and anti-friction oil tubes for all cleaning fluid;
• MATERIAL:The key parts of this equipment, for example: quick-connect female, one-way valve, exhaust valve structure, etc. adopt aerospace sealing materials, can resist more than 1600 kinds of chemical solvents, like benzene, hexane, cyclohexane, chlorobenzene, ethanol , Ether, ethyl acetate, acetone, ethylene glycol monoethyl ether, pyridine, phenol, etc. Oil pipe can adapt to any kind of car cleaner；
• APPLICATION: This injector clean kit includes many different adapters, covering almost all the EU, Asia, USA cars.
