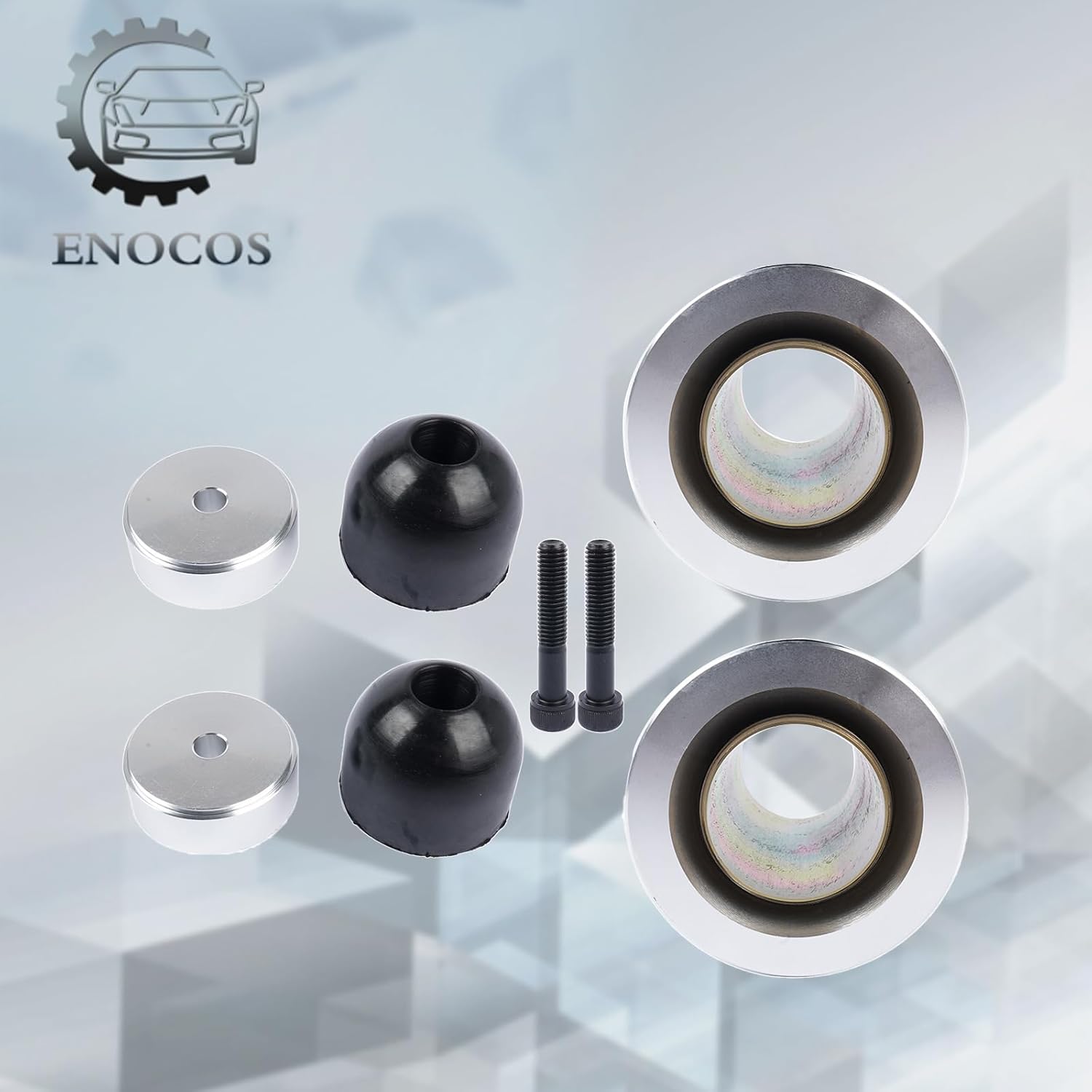

2PCS 2200 Front Adjustable Coil Over Spacer System Compatible with J'-eep Wrangler TJ LJ Comanche MJ Cherokee XJ Grand Cherokee ZJ JKS, Replace# JKS2200 Aluminum Coil Spacer Kit

INSTALLATION STEPS Install the coil spring compression tool to remove the spring. Loosen the lower stop before removing the spring. Remove the spring. The upper spring bracket is welded on XJ models. So measure the distance from the end of the mount to the washer, mark and cut on the outside of the mount, just below where the washer is inside the mount. (cutting is usually not required on other models) Sand and sandblast the cut surface to prevent rust. Install the new coil spacer kit and secure it to the top with the screws. (anti-seize lubricant will need to be applied to the bolts before installation) Follow the disassembly method and reinstall it back to complete. Before you begin, be sure to loosen the spring retaining clip where the spring base meets the axle and remove the anti-roll bar for easier installation.

• Compatibility - Compatible with following J'-eep models: 1986 - 1992 Comanche MJ, 984 - 2001 Cherok-ee XJ, 1993 - 1998 Grand Cherok-ee ZJ, 1997 - 2006 Wrangl-er TJ LJ.
• Replacement Part Number - JKS2200, JKS2200-XJ, 2200-XJ. This part feature billet aluminum construction for durability and not easy to deform;Cutting surface treatment,not easy to cut hands and prevent rusting.
• Function - Used to adjust the chassis height of a coil spring car without disassembling any suspension components. Adjustable lift height from 1-1/2" to 3-3/4".
• Easy to Install - Pretty easy install.No drilling or tapping. Note: Due to the welding of the upper spring bracket on the XJ model, it is necessary to cut a portion of the original base configuration of the vehicle.
